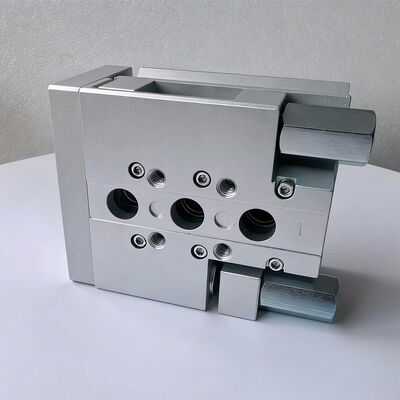

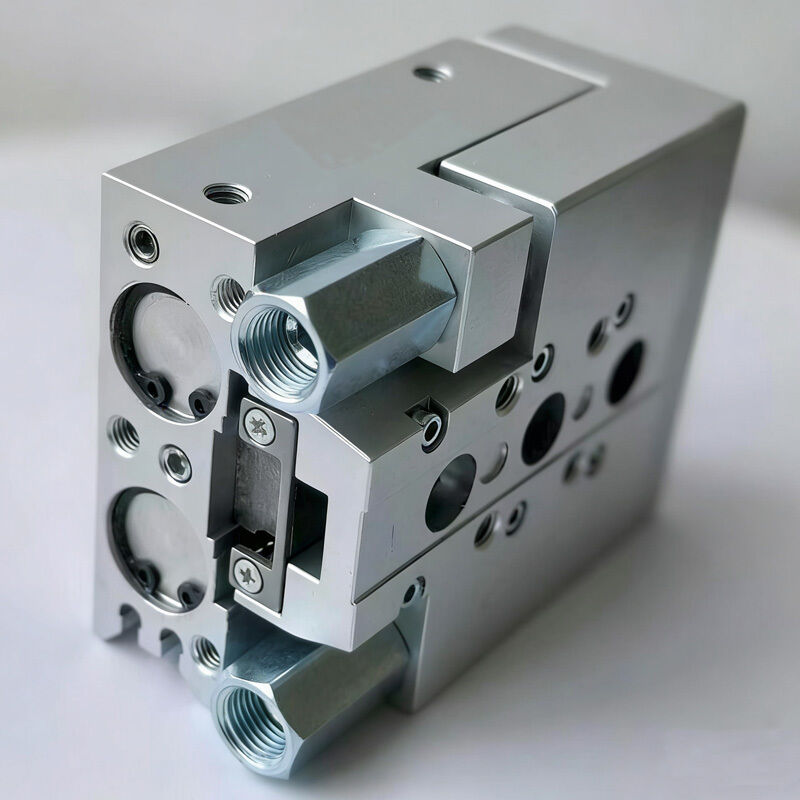

Name: Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A
Brand: FENGHUA FLUID AUTOMATIC CONTROL CO.,LTD
SKU: SLT-16-10-PA
Price: 50.00 USD
Availability: InStock

Thuis Producten Pneumatische Luchtcilinder

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A

Productdetails:

Plaats van herkomst:	Ningbo China (vasteland)
Merknaam:	FLUIDAC or OEM
Certificering:	ISO9001
Modelnummer:	SLT-16-10-PA

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 stuk
Verpakking Details:	Dozen, dozen, houten kisten, pallets
Levertijd:	Binnen 20 dagen na ontvangst van betaling of aanbetaling
Betalingscondities:	TT Advance/30% aanbetaling, 70% per kopie vrachtbrief, Western Union, Paypal
Levering vermogen:	1000 stuks per maand

Contact

Gedetailleerde productomschrijving

Droeg grootte (mm):	6 mm ~ 25 mm	Motiepatroon:	dubbele actie
Bedrijfsdrukbereik:	0.15~1.0MPa	Werkend medium:	Droge perslucht
Materiaal:	Aluminiumlegering	Slag (mm):	10.20.30.40.50.80.100.125.150.200
Markeren:	Mini sliding pneumatic cylinder , Double-acting air cylinder SLT series , Pneumatic cylinder SLT-16-10-P-A

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A

SLT Series sliding double acting Pneumatic air cylinder Bore size 6mm-25mm

SLT -16 - 80 - P - A

└─→ Type: Double acting Mini slide cylinder

└─→Piston Diameter (mm):6.10.16.20.25

└─→Stroke (mm): 10.20.30.40.50.80.100.125.150.200

└─→Cushion Type: Elastic cushion, Non-adjustable

└─→Position Sensing: Via Sensor

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A 0

Piston Dia.	Width (W)	Height(H)
2*6mm	35	20mm
2*10mm	50	30mm
2*16mm	66	40mm
2*20mm	85	49mm
2*25mm	104	60mm

Operating and Environmental Conditions

Piston Diameter ⌀ [mm]	6	10	16	20	25
Working Medium	Dry compressed air, lubricated or unlubricated
Operating Pressure [bar]	1.5 ... 10	1 ... 10
Ambient Temperature¹⁾ [°C]	-20 ... +60
Corrosion Resistance Class CRC²⁾	1

Mini Sliding Cylinder Double-acting Pneumatic Cylinder SLT Series SLT-16-10-P-A 1

Pneumatic Sliding cylinder,Air cylinder, Linear actuator,Gas cylinder,Double shaft air cylinder,Twin rod Pneumatic cyinder,Parallel air cylinder, compact air cylinder,table turnable air cyinder,rotary air cylinder,Rotary table cyinder, swivel table cylinder
